Pressure-Sensitive Adhesives Silicone Tapes Material Data Sheets
Silicone adhesive tapes are a group of specialty tapes made with silicone polymers and specially designed to stick to notoriously tricky low surface energy (LSE) silicone substrates. Silicone adhesive tapes are generally the most expensive adhesive tapes and they typically offer a much more comprehensive temperature use range than traditional rubber or acrylic adhesive tapes and provide clean removability.
Other silicone adhesive tape traits include:
Excellent for long-term, critical applications ○ Very good moisture, UV, and chemical resistance ○ Low initial tack ○ Bond strength that builds over time
JBC Technologies processes a wide selection of silicone adhesive tapes and we can slit, laminate, and die-cut them into custom parts of nearly any shape and size. If you'd like more technical information on the silicone tapes we have processed browse the data sheets below.
Adhesive Applications - S580 - Polysil™ Red Silicone Platers Tape
Adhesive Applications PolySil S580 is a red polyester (PET) crosslinked silicone adhesive tape with controlled adhesion and good conformability for sharp line definition in etching and plating operations. The controlled level of crosslinking assures a proper balance of adhesion to substrates, chemical resistance and clean removal with no residue. The tape is unique in that the adhesive system is translucent on the polyester and allows the operator to make precision alignments easily
Adhesive Applications - S1001 - 2 mil Clear Silicone Transfer Tape
Adhesive Applications PolySil™ S1001 silicone transfer adhesive is designed for high-performance applications requiring chemical resistance, excellent bond strength, and resistance to extreme temperatures (-100°F to 500°F). The 2 mil silicone adhesive is protected by two clear fluorosilicone-coated polyester (PET) film liners. S1001 bonds well to metals, silicone foam, most plastics, and low surface energy (LSE) surfaces such as polyethylene and polypropylene.
Adhesive Applications- S5005DC - Polysil™ Double Coated Silicone Adhesive Tape
Adhesive Applications Polysil S5005DC is a polyester (PET) film-supported double-coated silicone adhesive tape designed for high-performance applications requiring chemical resistance, excellent bond strength, and resistance to extreme temperatures. The silicone adhesive layers are coated on both sides of a 0.5 mil PET film carrier and protected by two fluorosilicone-coated PET liners.
Adhesive Applications- S5711-2 - Polysil™ Yellow Silicone Adhesive Tape
Adhesive Applications PolySil S5711-2 is a yellow high-tack silicone adhesive tape consisting of 1.5 mils of silicone adhesive on a 1 mil thick polyester (PET) carrier. PolySil™ S5711-2 has controlled adhesion and good conformability. The controlled level of crosslinking assures a proper balance of adhesion to substrates and chemical and temperature resistance.
Adhesive Applications- S8511-2 - Polysil™ Green Silicone Adhesive Tape
Adhesive Applications PolySil S8511-2 is a green high-tack silicone adhesive tape featuring 1.5 mils of silicone adhesive on a 1 mil thick polyester (PET) carrier. PolySil S8511-2 has controlled adhesion and good conformability. The controlled level of crosslinking assures a proper balance of adhesion to substrates and chemical and temperature resistance.
Adhesive Applications - S8512-2 - Polysil™ Green Silicone Adhesive Tape
Adhesive Applications PolySil S8512-2 is a high-tack green silicone adhesive tape with controlled adhesion and good conformability. PolySil S8512-2 features 1.5 mils of adhesive on a 2 mil thick polyester (PET) carrier. The controlled level of crosslinking assures a proper balance of adhesion to substrates and chemical and temperature resistance.
Adhesive Applications - S9511-2 - Polysil™ Blue Silicone Adhesive Tape
Adhesive Applications PolySil S9511-2 is a blue high-tack silicone adhesive tape with controlled adhesion and good conformability. PolySil S9511-2 features 1.5 mils of adhesive on a 1mil thick polyester (PET) carrier. The controlled level of crosslinking assures a proper balance of adhesion to substrates and chemical and temperature resistance.
Adhesive Applications - S9512-2 - Polysil™ Blue Silicone Adhesive Tape
Adhesive Applications PolySil S9512-2 is a high-tack blue silicone adhesive tape featuring 1.5 mils of adhesive on a 2 mil thick polyester (PET) carrier. PolySil S9512-2 has controlled adhesion and good conformability. The controlled level of crosslinking assures a proper balance of adhesion to substrates and chemical and temperature resistance.

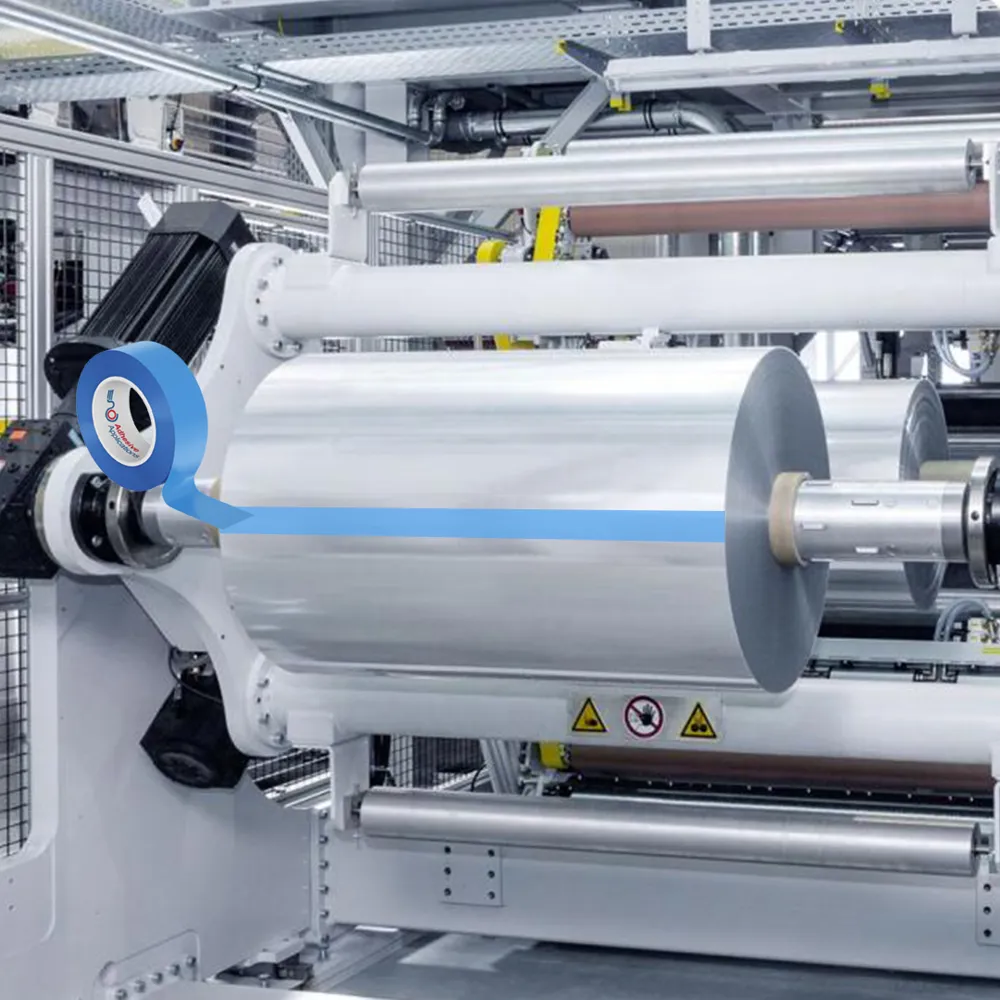

Adhesive Applications - S9611-2SL - Polysil™ Blue Silicone Adhesive Tape
Adhesive Applications Polysil S9611-2SL is a linered, silicone-release-backed blue splicing silicone adhesive tape designed for functional splices of silicone release liners in contact with both acrylic and rubber adhesives. Polysil S9611-2SL features an ultra-easy release siliconized backing and high shear strength adhesive to perform in the most demanding functional splicing applications. Supplied on a release-coated PET film for easy handling.
Adhesive Applications - SP590 - Polysil™ Polyimide Silicone Adhesive Tape
Adhesive Applications PolySil SP590 silicone adhesive tape offers optimum electrical and thermal insulation performance. The continuous service temperature range is -100°F to 500°F (-73°C to 260°C), with short-term, intermittent service up to 600°F (315°C). PolySil SP590 provides clean removal in high-temperature masking applications, offers good conformability, and meets ASTM D5213 type 1 item A, and 94VTM-1 requirements.
Adhesive Applications - SP590-2 - Polysil™ Polyimide Silicone Adhesive Tape
Adhesive Applications PolySil SP590-2 silicone adhesive tape offers optimum performance in electrical and thermal insulation. The continuous service temperature range is -100°F to 500°F (-73°C to 260°C), with short-term, intermittent service up to 600°F (315°C). PolySil SP590-2 provides clean removal in high-temperature masking applications and meets ASTM D5213 type 1 item A.
Adhesive Applications - SP590HT-DC2 - Polysil™ Double Coated Silicone Adhesive Tape
Adhesive Applications PolySil SP590HT-DC2 silicone adhesive tape offers optimum electrical and thermal insulation performance. The continuous service temperature range is -100°F to 500°F (-73°C to 260°C), with short-term, intermittent service up to 600°F (315°C). PolySil SP590HT-DC-2 high tack adhesive is excellent for quick and secure attachment and provides clean removal in high-temperature masking applications. The product is supplied with two fluorosilicone coated release liners.
For more information Contact a JBC representative
While these silicone adhesive tape material data sheets can get you started, it's always best to work with your JBC technical representative early on in your project.
We'll help you identify the adhesive tape that will cost-effectively achieve your fit, form, and function objectives, as well as design for manufacturability requirements.
